Description

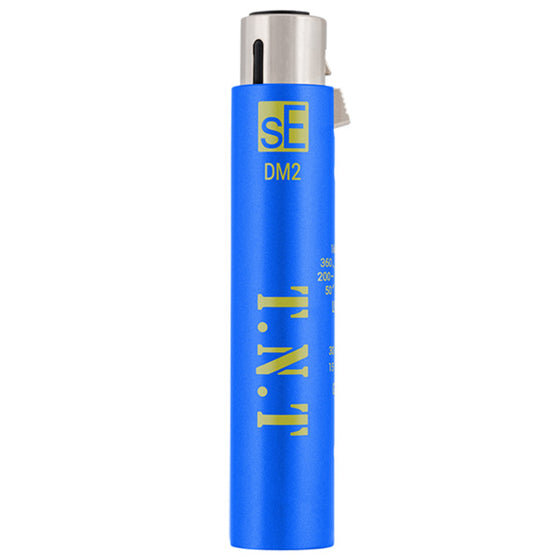

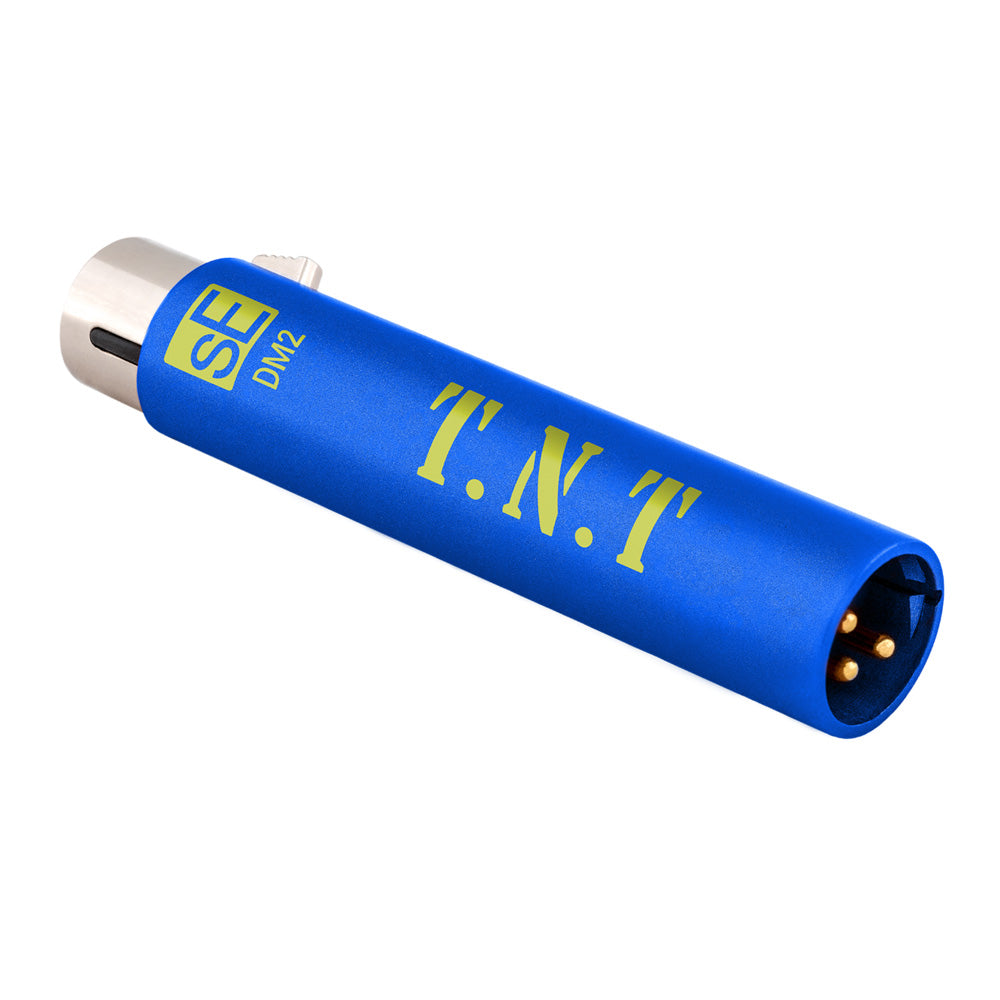

The DM2 TNT lets you choose between a moderate +15dB or explosive +30dB of gain with an ultra-high impedance input and eight load settings to perfectly match any passive microphone.
For all your dynamic and passive ribbon microphones - perfect for podcasting, recording, or live sound.
Whether you’re a podcaster, recording engineer, or running live sound, sE inline preamps are the perfect way to boost the signal from a passive mic, reduce the likelihood of interference, and provide significantly improved level to your preamp – all without adding noise or coloration.
Reliable operation even in demanding on-stage applications in difficult environments is ensured by a roadworthy and slim all-metal design, robust construction, and high-quality manufacturing standards.
Switchable, clean and consistent gain from moderate +15dB to explosive +30dB
-
designed for neutral, balanced sound quality with minimal noise
-
explore eight settings ranging from an unconventionally low 50 Ω to stunningly high 10 MΩ to match your preamp with any mic accurately
-
two gain levels for even higher flexibility on various sources
-
ruthlessly boosts the signal independent from load impedance or cable length
SPECS
Frequency Range: 10 Hz - 120,000 Hz (-0.3 dB)
Gain: 15 dB / 30 dB
Max output level (0.5% THD): 9.5 dBV (3.0 V)
Output noise level: 1 μV @ 15 dB / 6.6 μV @ 30 dB
Powering: 48 Volts according to IEC 61938
Electrical impedance: 135 Ohms
Recommended load impedance: >1k Ohms
Current consumption: 3.1 mA
Connectivity: 3-pin male/female XLR connector
Dimensions: Diameter: 19 mm (0.75 in.) Length: 95.5 mm (3.76 in.)
Weight: 80 g (2.82 oz.)
REQUIREMENTS
-

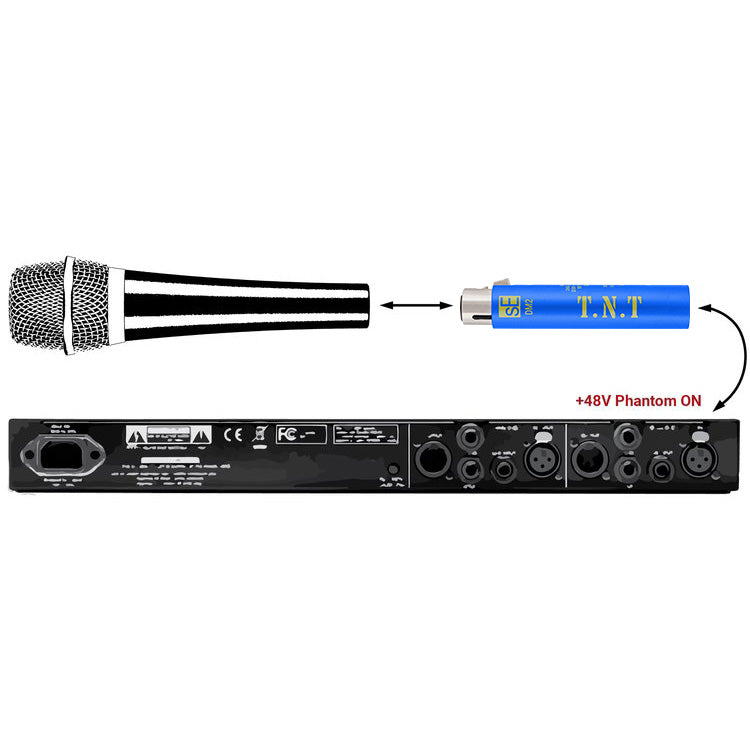

input: passive microphone (ribbon/dynamic)
-
output: preamp/mixer/audio interface providing 48V phantom power
LIMITATIONS
-
not suitable for phantom-powered microphones (condenser microphones, active ribbon microphones)
