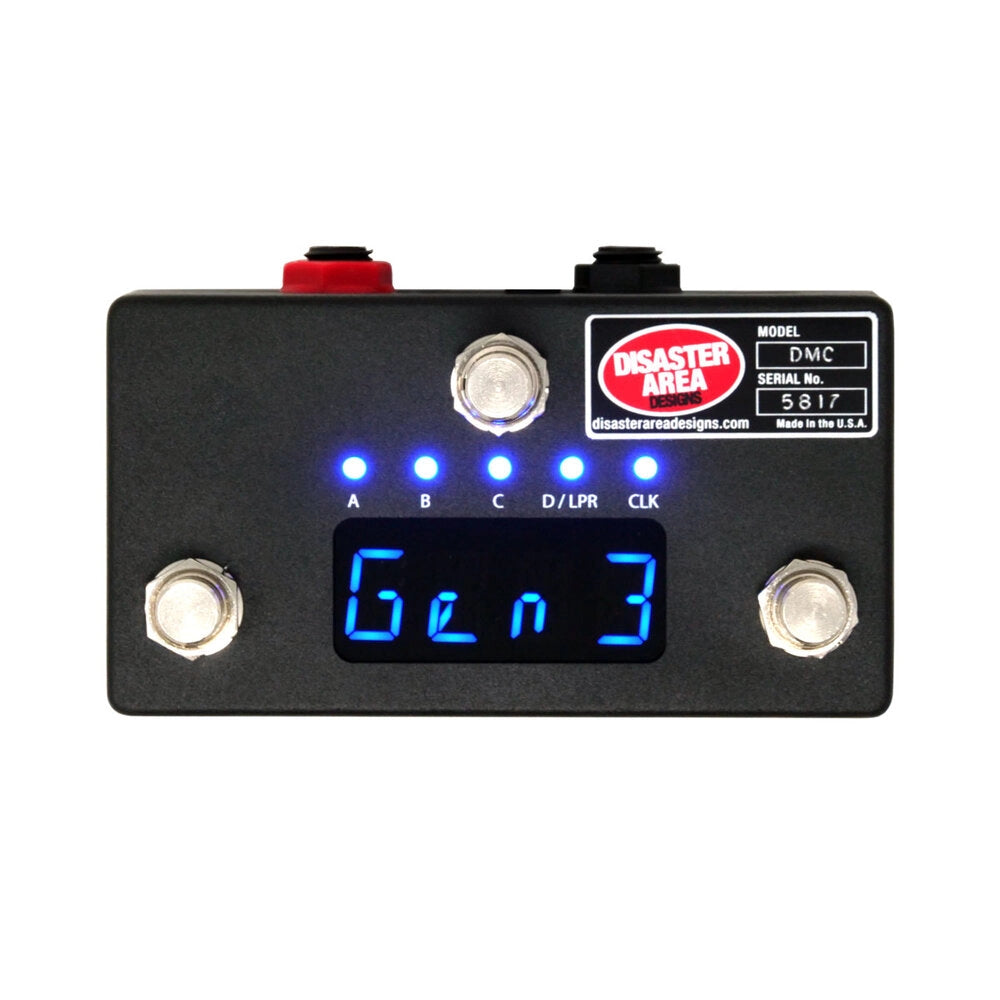

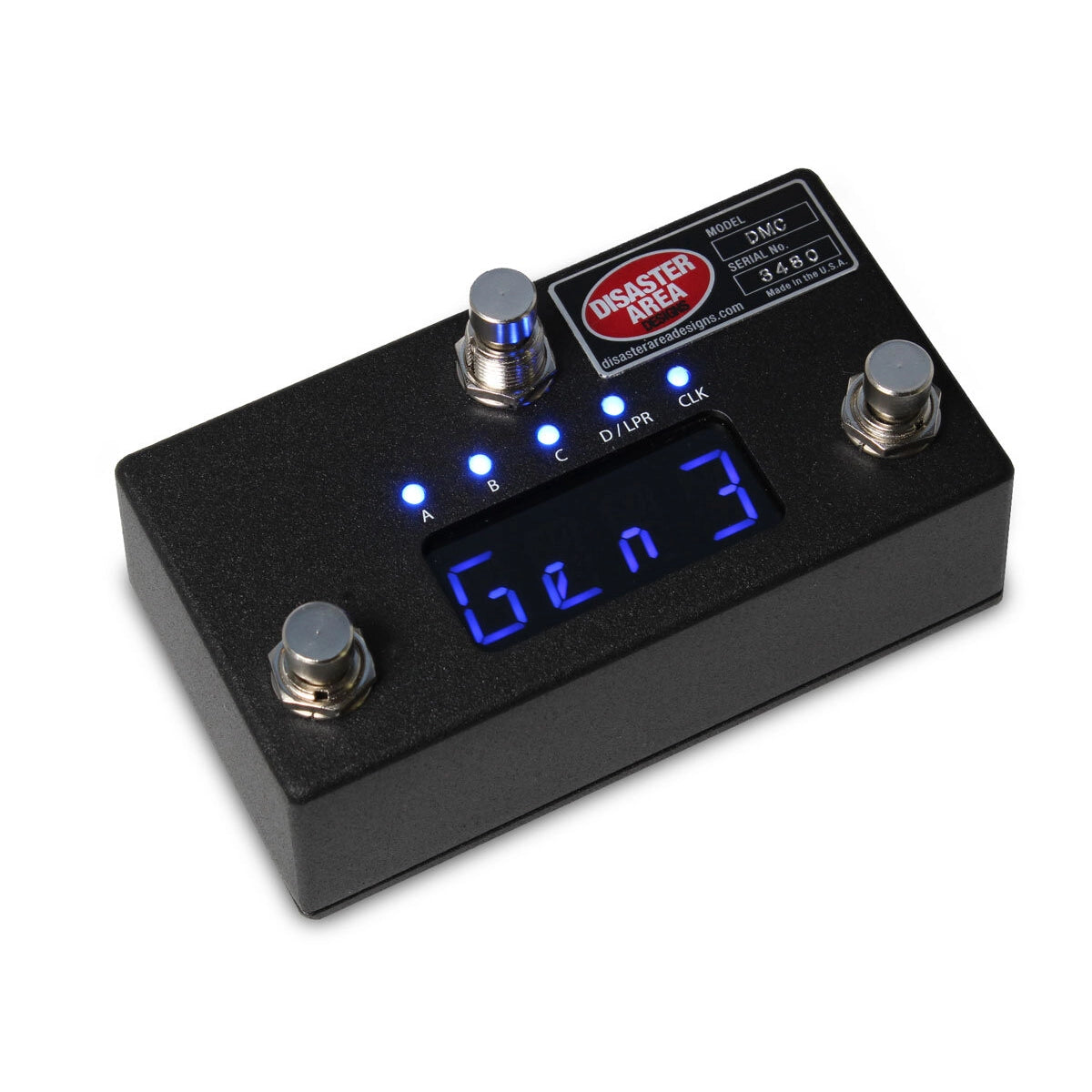

Compact MIDI Controller
Control up to four MIDI devices with the DMC-3XL Gen3. Select presets, send expression pedal data, control your device’s looper modes, and more.
The DMC-3XL Gen3 uses our advanced Gen3 technology in a compact footprint - just 4.8” x 2.6” x 1.4” (120mm x 66mm x 35mm)
Featuring up to nine control modes, the DMC-3XL Gen3 is designed to interface with up to four MIDI devices.
Device Control: Program select and bypass for up to four devices.
Looper Control: Controls the looper on the Strymon Timeline, Eventide H9 / Timefactor, or Line 6 M9/M13.
Utility: User-set actions on left and right buttons (2 commands per button)
Preset: Stores programs from Device Control pages and allows the user to change multiple devices at once.
Set List: Allows the user to re-arrange Preset scenes on the fly
Clock: Access the DMC-3XL’s built-in MIDI clock and tap tempo interface
Optional Side Roller: Large foot-actuated analog control sends expression pedal or looper volume data
Bright blue LED display indicates program number, status, and more
One 5-pin MIDI port supports MIDI out using a standard MIDI cable, or MIDI input and output using our MIDI Y-Cable.
One MultiJack connector can function as Expression Pedal input, Tap Tempo Output, Function Switch Output, Footswitch Input, or MIDI Output.
One Expression connnector can function as Expression Pedal input, Function Switch input, or MIDI output.
Internal DIP switches to customize MultiJack functions.
Up to 99 user-accessible presets (if preset page is active.)
Controls up to four MIDI devices
Looper control page
Programmable MIDI clock and tap source to synchronize tempo on multiple pedals
User-definable Utility page sends any MIDI CC command, MIDI notes, bank up and down, more.
Add an optional Side Roller to send expression data to any or all of your connected MIDI devices
USB MIDI or USB Host connection for advanced control possibilities
Runs on standard 9V power, 60mA minimum.
The DMC-3XL Gen3 also features our astounding MultiJack connector, which can perform several different functions to simplify your setup!
Connect one or two 1/4″ MIDI devices from companies such as Alexander Pedals, Chase Bliss Audio, Empress, and Meris
Connect an expression pedal to send MIDI messages to one or more of your devices.
Connect an external footswitch for tap tempo control.
Send tap tempo to an external device such as a DD-7, Panther Cub, Flint, and more.
Need more control? Use the USB port to interface with your computer or tablet device and turn the DMC-3XL into a USB MIDI controller. Maybe you have a Zoom MultiStomp (MS-50G / MS-60B / MS-70CDR?) or a newer Red Panda pedal? Connect it to the USB port using our gHOST Adapter to control it with MIDI!
