About the Product
Synesthesia is an advanced, yet user friendly dual-channel multi-modulation engines, capable of running two modulation algorithms simultaneously. Packed with 38 classic and modern algorithms and 3 different DSP routing schemes Synesthesia offers limitless sonic possibilities.
Synesthesia is not just another modulation pedal. By marrying a powerful dual-engine architecture with rich and deep algorithms we provide players with immersive and 'colorful' modulation effects experience, hence the name : Synesthesia.
Synesthesia for everyone. with carefully designed user interface and comprehensive feature sets, Synesthesia is suitable for professional musicians, recording musicians, performers, as well as bedroom guitarists.
Up to 38 on-board algorithms - more may be made accessible via the SymmLab editor.
Comprehensive external control
-
Expression Pedal - with adjustable heel and toe values.
-
Control Voltage (CV) - takes 0 - 2.5 V control voltages.
-
Aux Switches - accepts up to 3 external switches for versatile control (tap-tempo, bank up/down, etc).
-
MIDI In / MIDI Thru - nearly all features and functionalities of the pedal are opened to MIDI access, including MIDI clock.
Tap-Tempo
You can tap in your tempo using an external tap pedal, via Midi, or on the pedal itself.
Space saving
12 cm x 12 cm (4.7" x 3.5"), impressively small for a pedal that can replace 3 or more individual stompboxes.

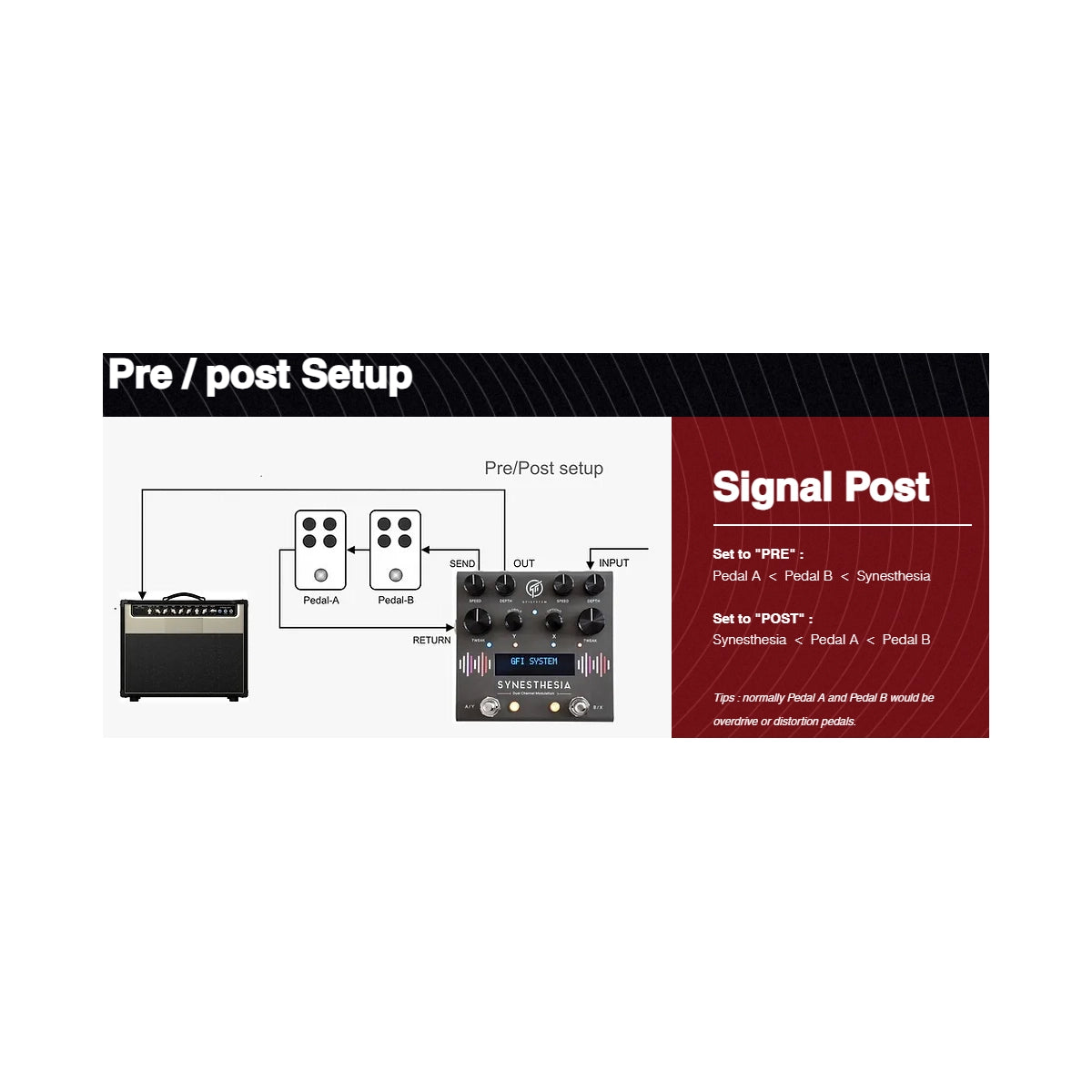

Switch effects order (pre or post)
Effortlessly via the switchable Pre/Post configuration (specified on per-preset basis).
Key Features
-
Dual-engine runs 2 algorithms simultaneously.
-

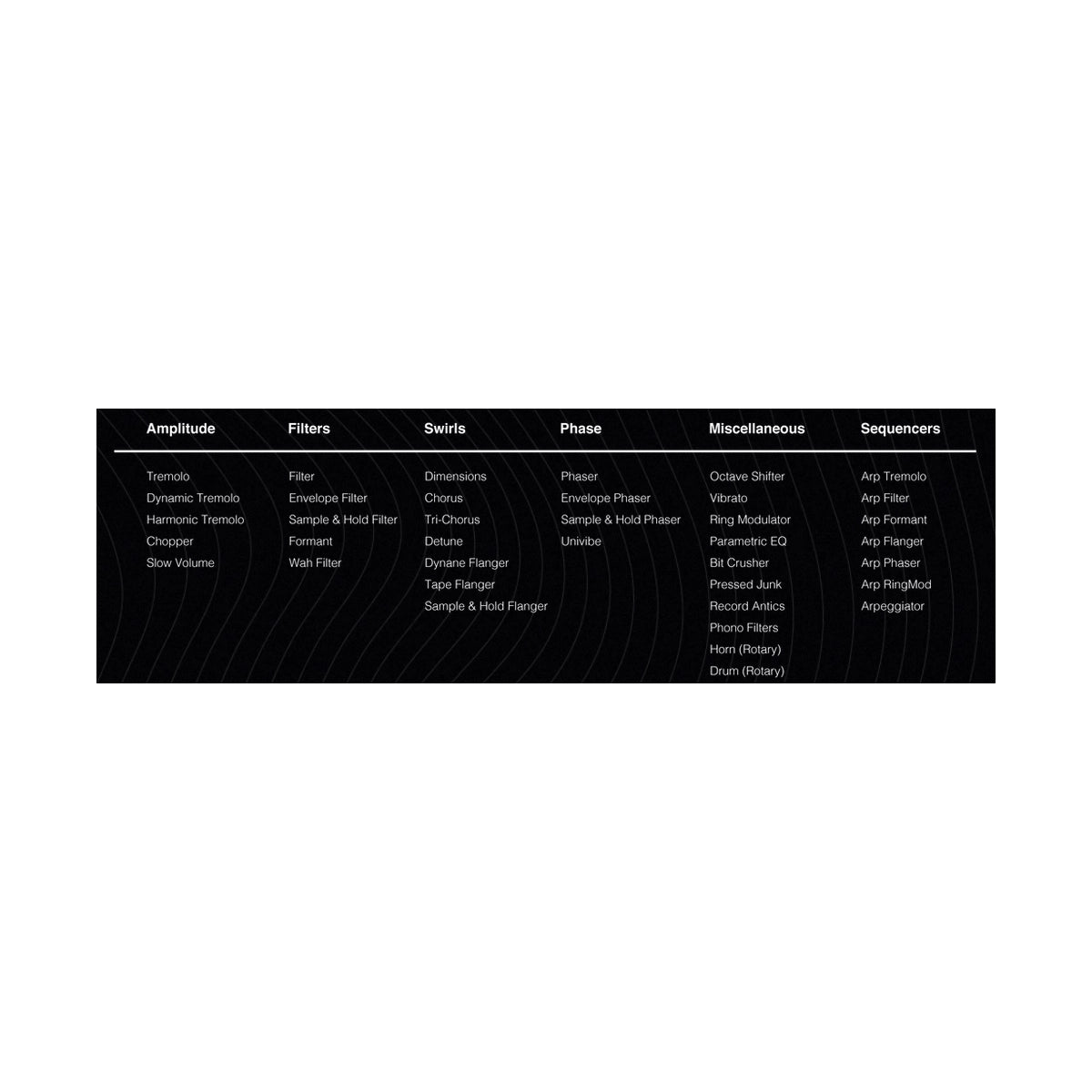

38 classic and modern modulation effects.
-

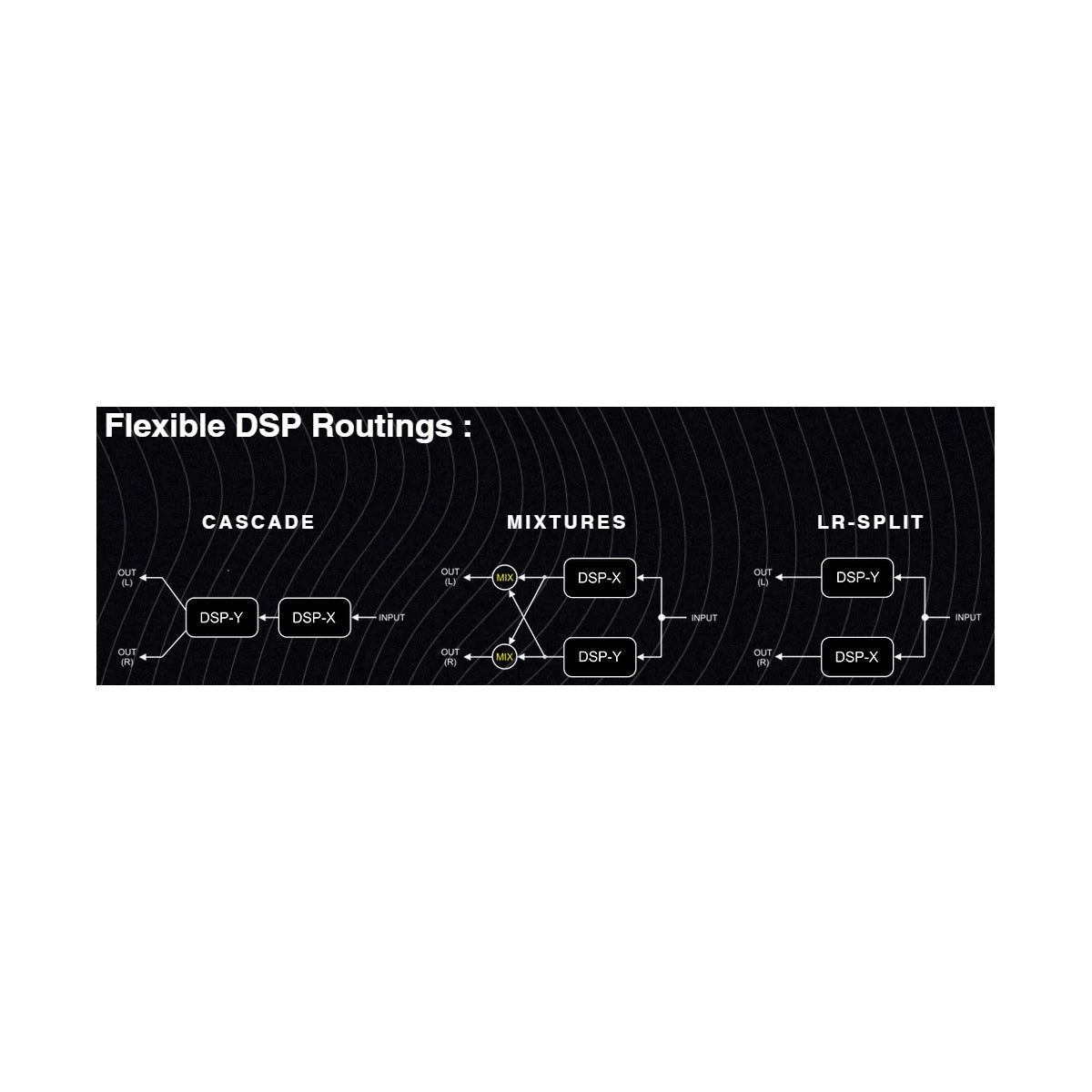

Flexible DSP Routings : Cascade, Mixture, Split.
-
32 Presets.
-
Tap-Tempo.
-
MIDI In / MIDI Thru.
-
Expression Pedal and CV input.
-
Aux Switch expansion.
Specification
-
Input impedances : 1 MOhm.
-
Output impedances : 500 Ohm.
-
DAC / ADC resolution : 24 bits.
-
Current draw : ~240 mA.
-
Input / Output jacks : 1/4 inch TS.
-
USB Connector : Type B
-
Weight : 800 grams (1.6 lbs).
-
Dimension : 12 (L) x 12 (W) x 5.5 (H) cm
-
Power requirement : 9VDC / 240mA, negative-center plug (Power supply is not included).
