Description
*This is a B-stock power amp that has been on our sales floor for a while. B-stock items may have extremely minor signs of wear. This piece of equipment still applies for all manufacturer warranties, if applicable.*
Features
- Power levels matched to the most popular speakers used by entertainers
- Optimized for maximum real-world headroom into 4- and 8-ohm speaker systems
- Inputs: XLR, 1/4-inch TRS and phono input connectors for compatibility with any source
- Outputs: Speakon® combo accepts 1/4-inch (TS) plugs or Speakon 2- and 4-pole plugs (connects 2 poles only). Binding posts support all other speaker wiring systems
- Minimum depth chassis (10.1-inch / 257 mm) fits in compact, inexpensive effects racks
- Lightweight - GX3 and GX5 less than 26 lb (12.5 kg). GX7 only 15.5 lb (7 kg)*
- Detented gain controls for precise setting and matching of sensitivity
- GuardRail™ automatically protects the amplifier and loudspeakers from damage due to temperature rise or overdrive without shutting down the show
- Front panel LEDs monitor power, signal, and clipping
- Subwoofer/satellite crossover built-in
* 230V 16.5 lb (7.5 kg)
SPECIFICATIONS
- 8Ω continous, both channels driven: 300 W
- 4Ω continous, both channels driven: 425 W
- Distortion (1 dB below rated power, 1 kHz): 8 ohms: less than 0.02%, 4 ohms: less than 0.05%
- Signal to Noise (20 Hz - 20 kHz): 100 dB
- Input Sensitivity: 1.2 V rms
- Voltage Gain: 32.2 dB
- Output Circuitry: Class B
- Power Requirements (1/8 power, pink noise at 4 ohms, 120V): 6.3 A
- Frequency Response: 20 Hz–20 kHz, +0, -1 dB
- Dynamic Headroom (4 ohms): 2 dB
- Input Impedance: Greater than 20 kΩ (balanced)
- Maximum Input Level: +24 dBu (16 V rms)

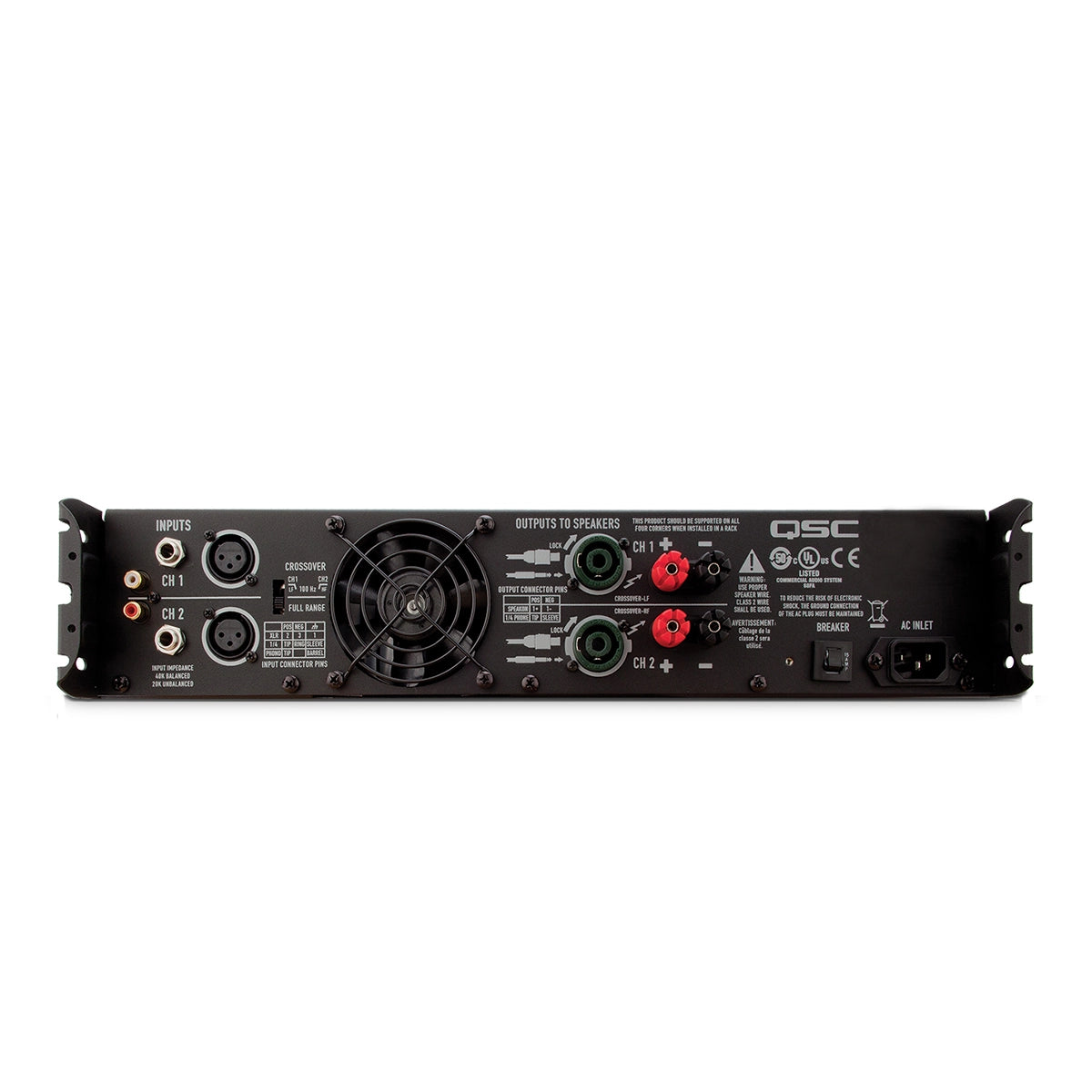

- Input Connectors (each channel): 3-pin XLR and 1/4-inch TRS, balanced, parallel Phono, unbalanced
- Output Connectors (each channel): Speakon®, 1/4-inch, Binding posts
- Amplifier and Load Protection: Short circuit, open circuit, thermal, RF protection, load protected against DC faults
- Front Panel Controls and Indicators: Gain controls, 21 detents. Red CLIP LEDs, proportional, 0.1% THD threshold. Green SIGNAL LEDs, threshold 35 dB below clipping. Blue POWER LED, AC on
- Rear Panel Controls: Full Range / Crossover switch
- 100 Hz, 3rd order LP (sub), 2nd order HP (top)
- Product Dimensions (H×W×D): 89 × 483 × 257 mm
- 3.5 × 19 × 10.1 in
- Net Weight: 12.1 kg / 27 lb
