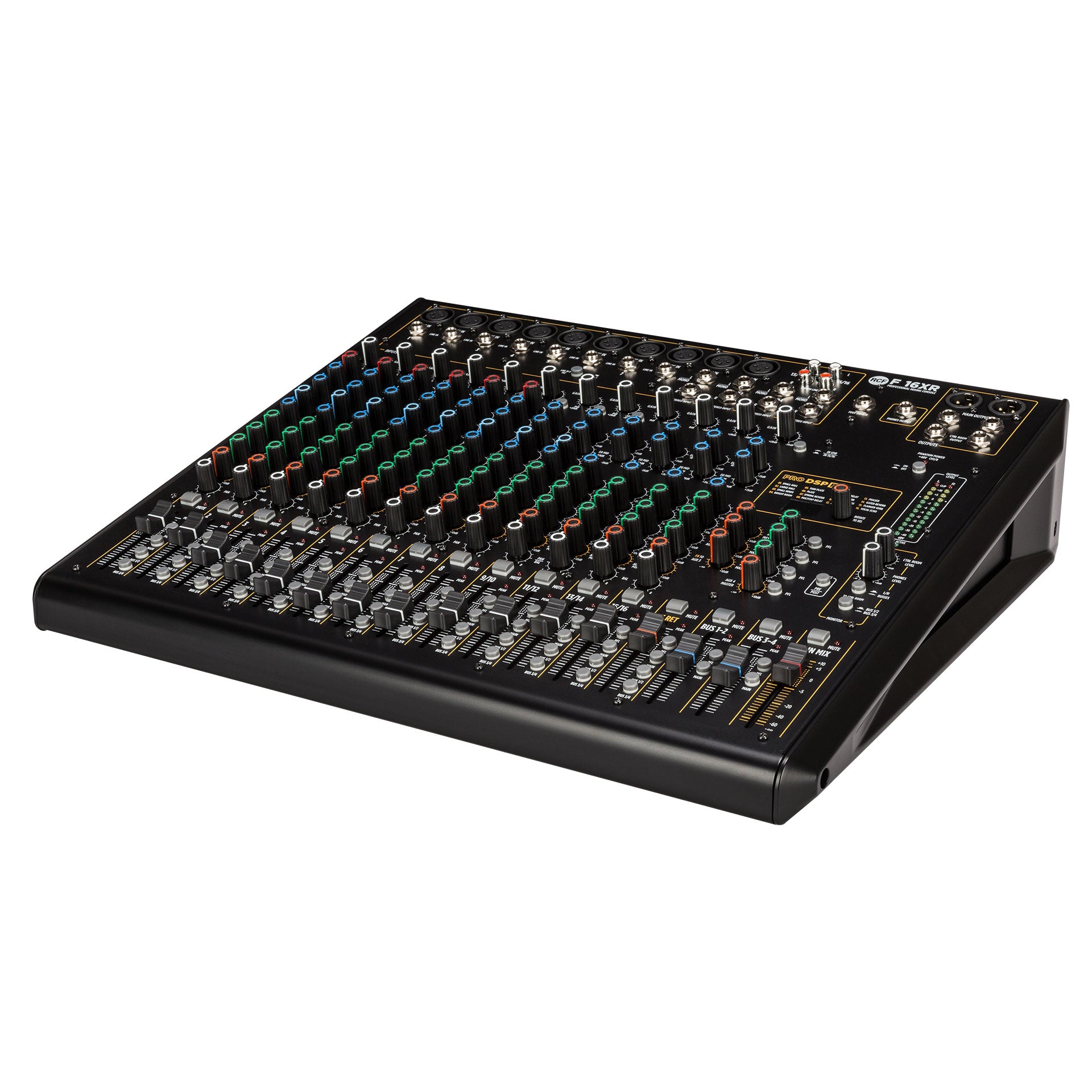

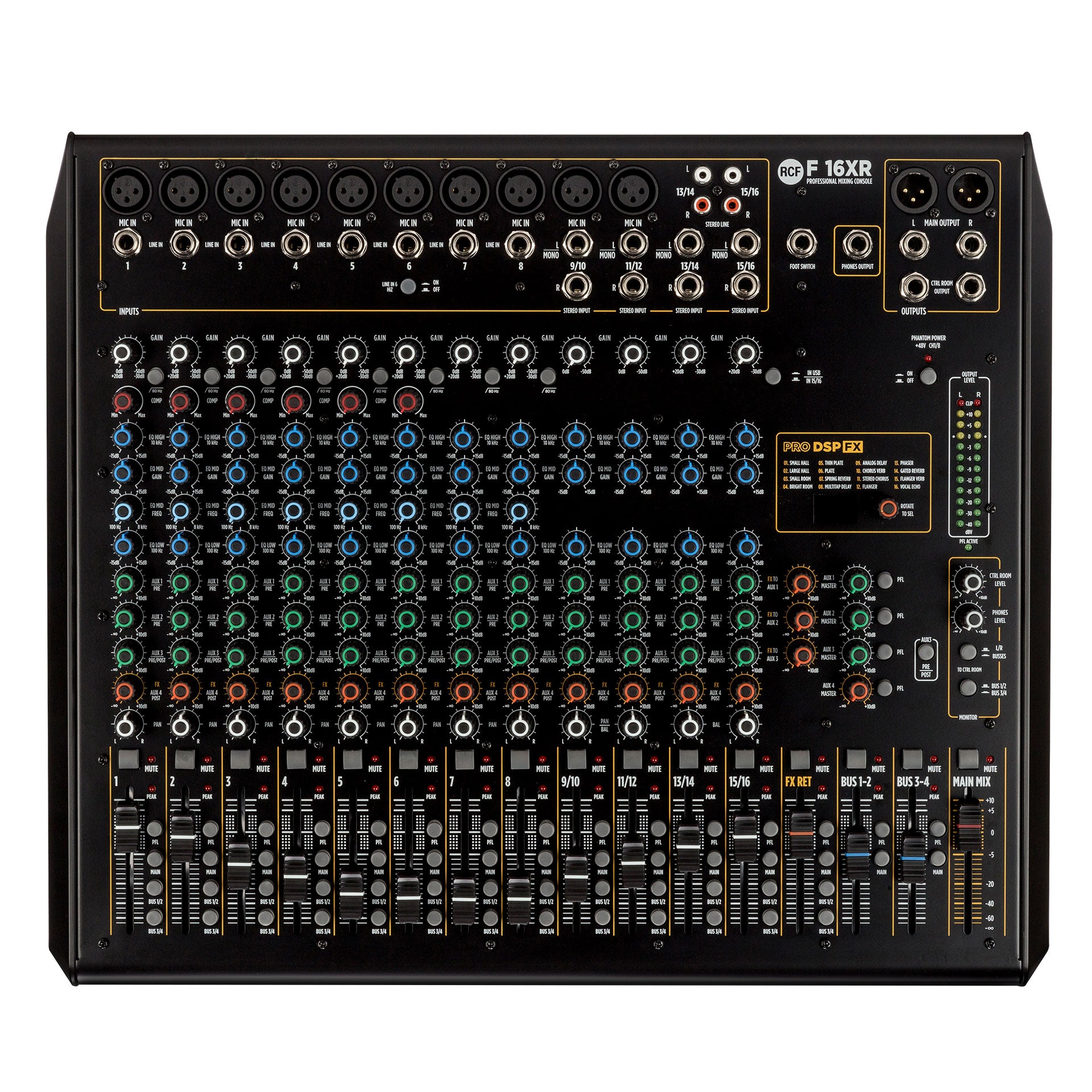

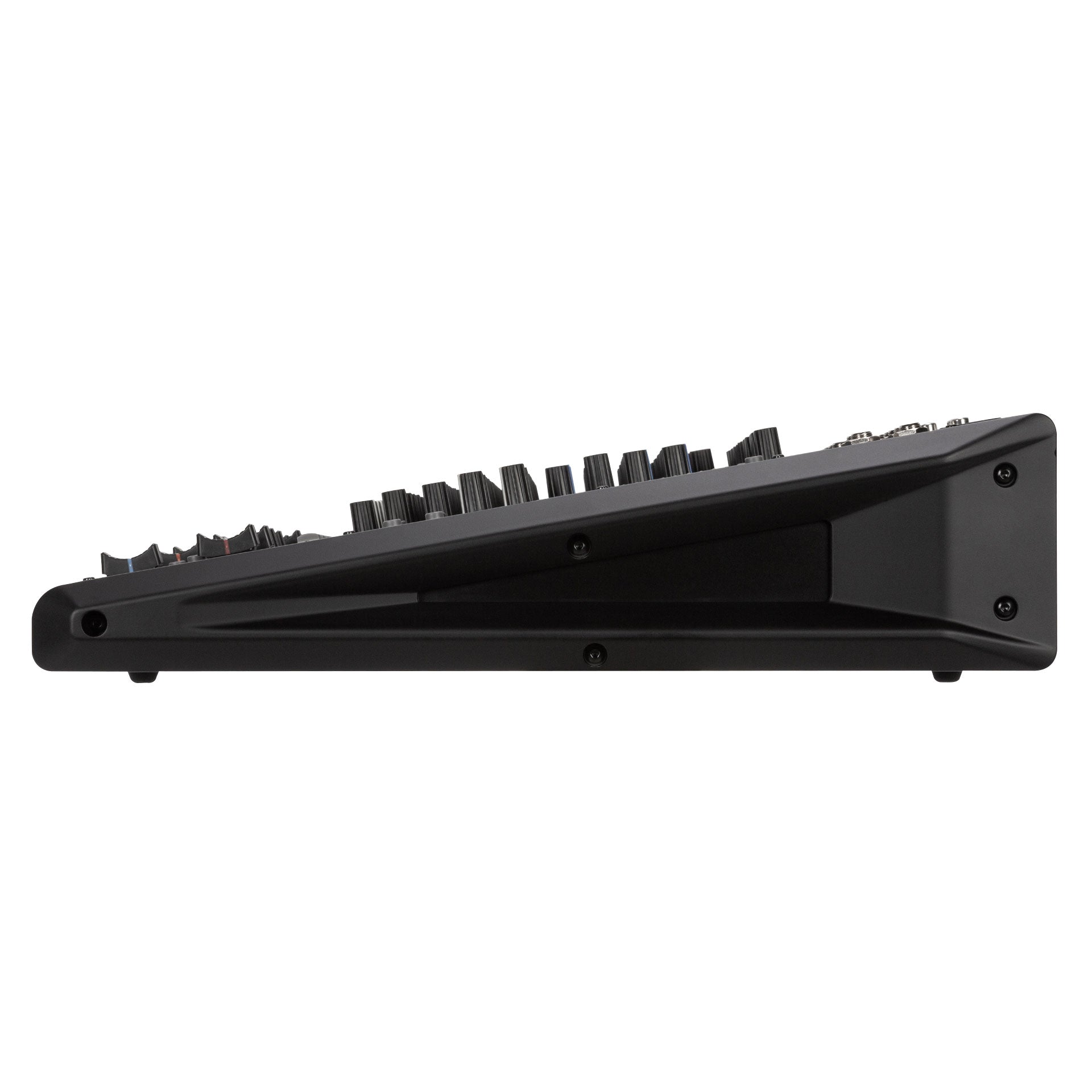

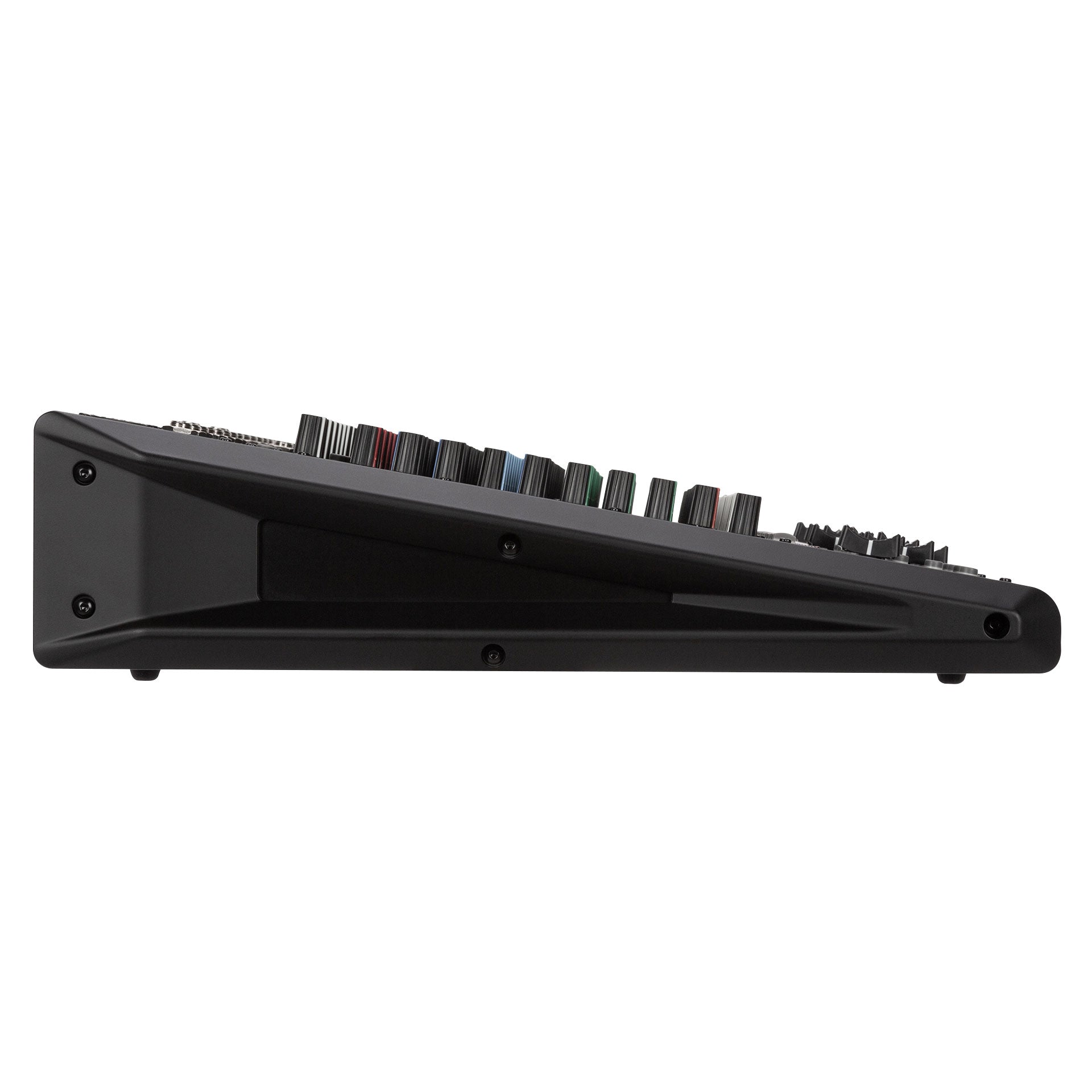

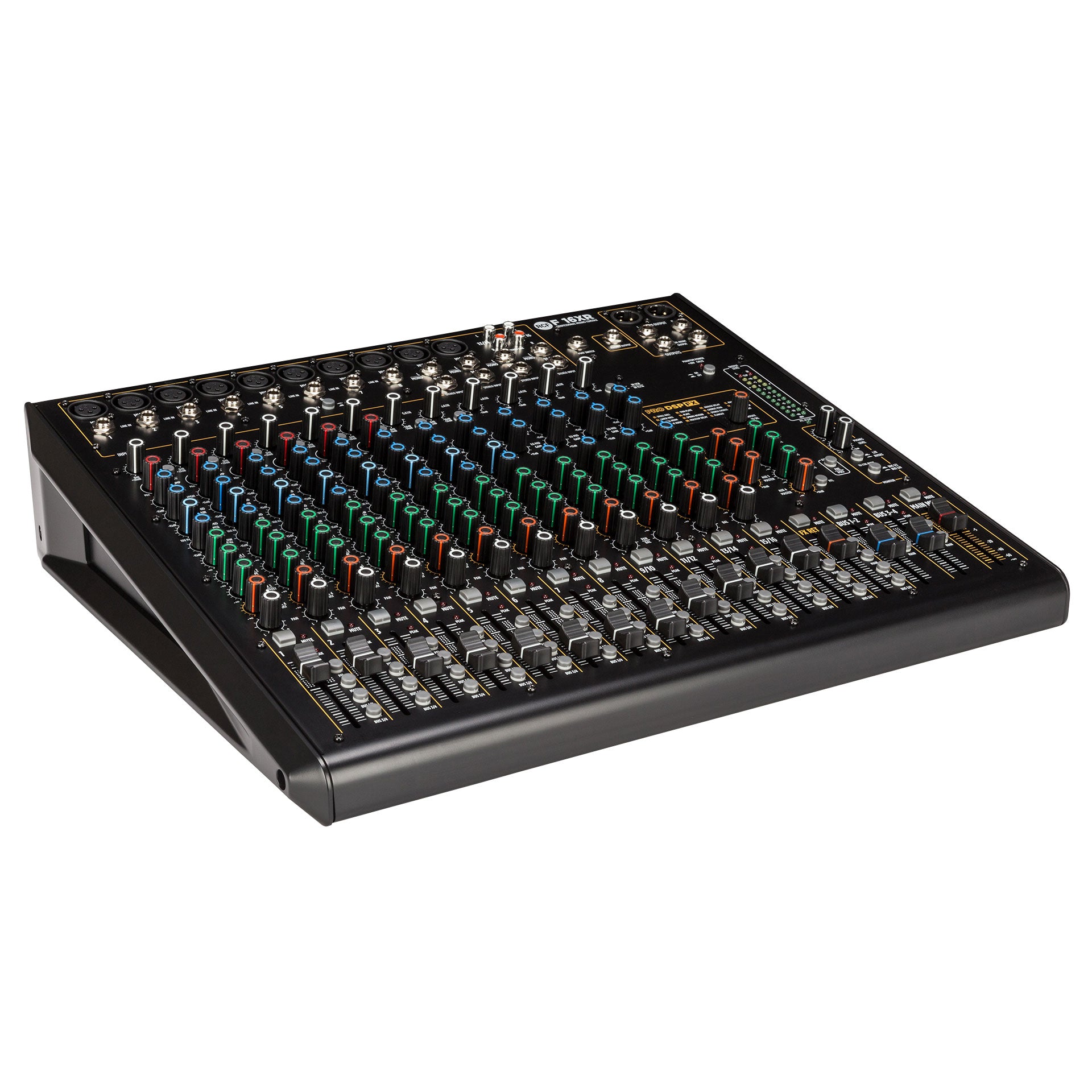

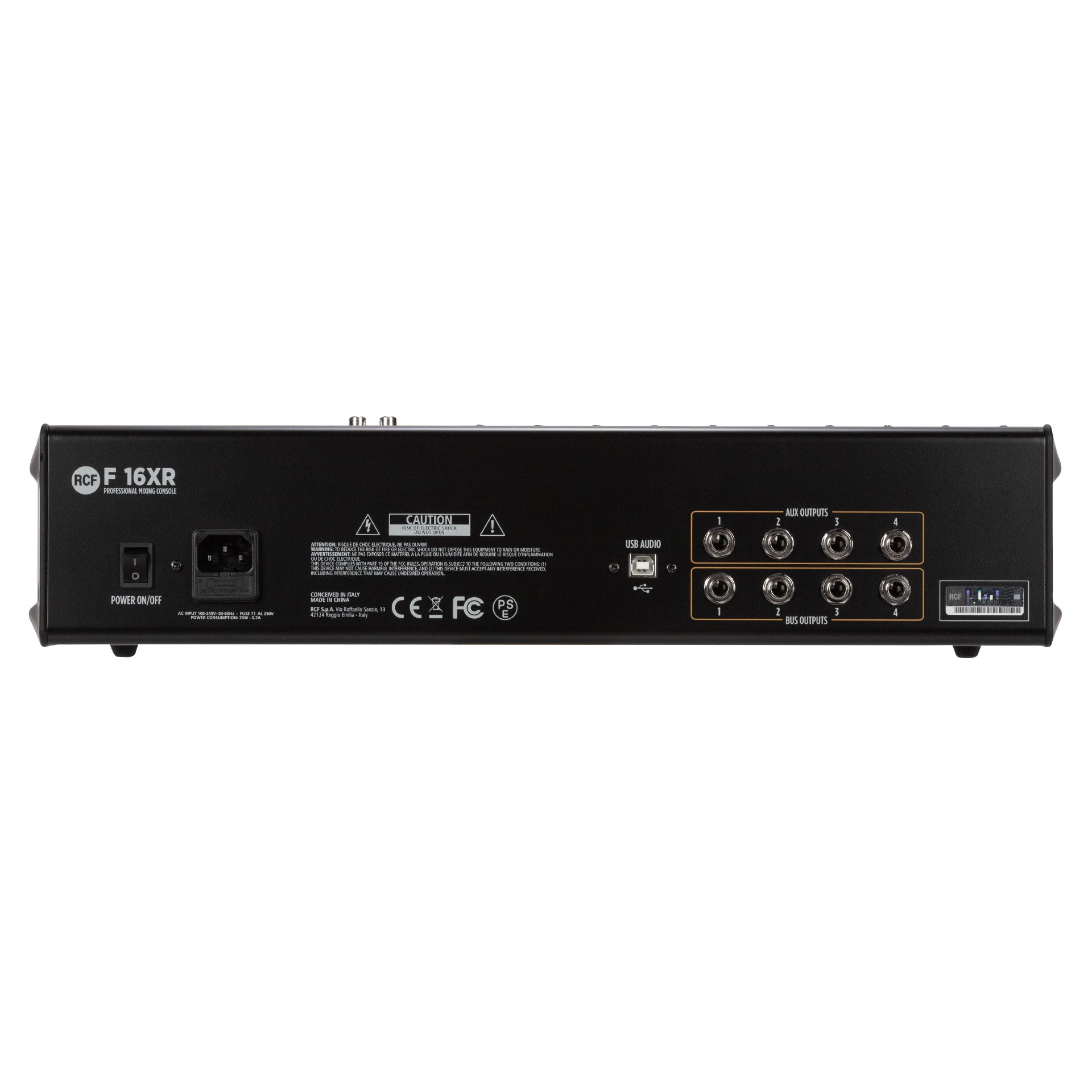

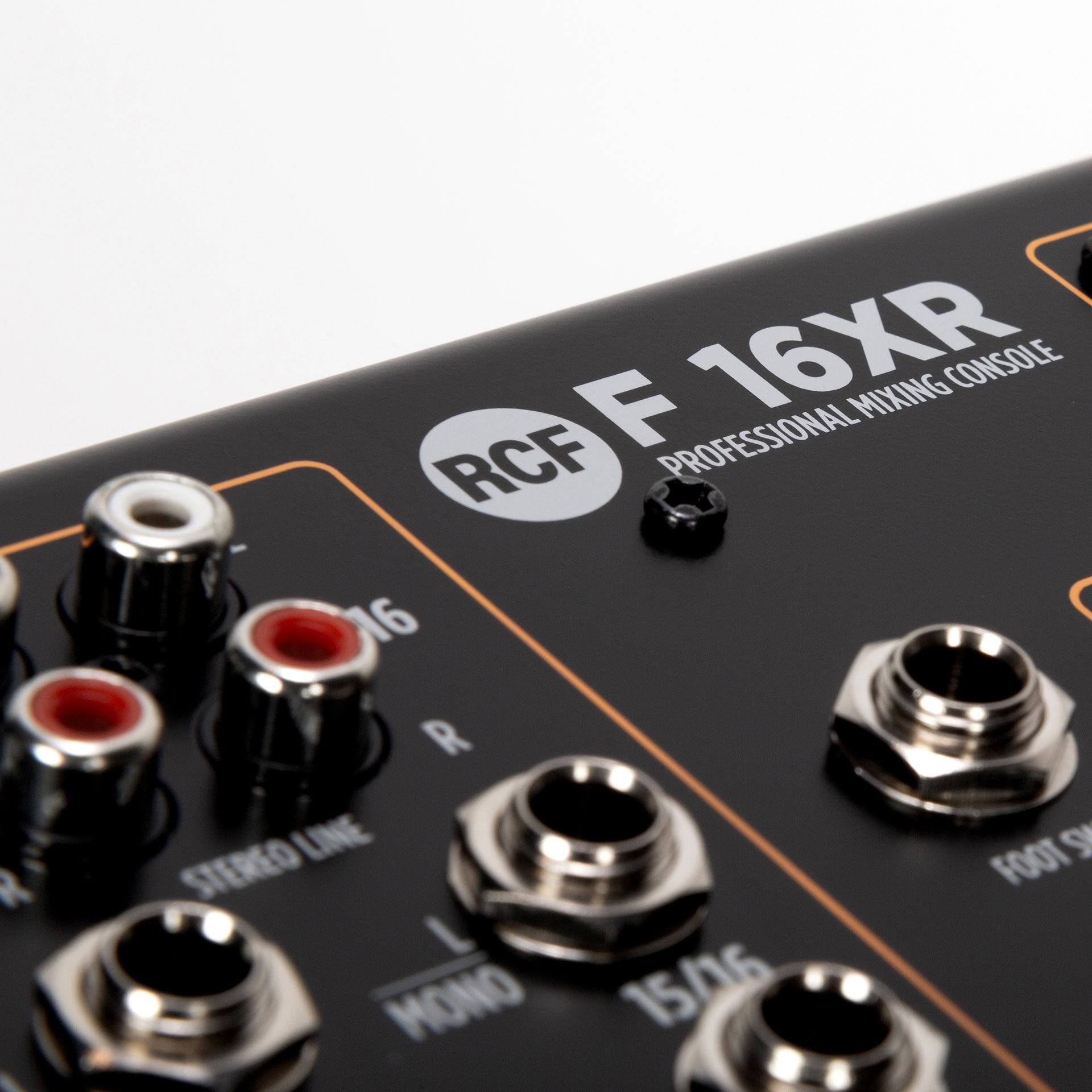

RCF F16-XR Mixer
RCF F16-XR Mixer
RCF F16-XR Mixer
RCF F16-XR Mixer
RCF F16-XR Mixer
RCF F16-XR Mixer
RCF F16-XR Mixer
RCF F16-XR Mixer
RCF F16-XR Mixer
RCF F16-XR Mixer
RCF F16-XR Mixer
RCF F16-XR Mixer
RCF F16-XR Mixer
RCF F16-XR Mixer
RCF F16-XR Mixer

RCF F16-XR Mixer

$499.00
Interested in music lessons? Get started here!

The F 16XR features 10 mic preamp inputs, 4 mono line inputs, 4 stereo line inputs plus multi-FX and Recording via USB port, with balanced main output (Stereo XLR + TRS) and 6 single control compressors. The mono channels are provided with 3-band EQ, with selectable mid frequency, and 3-band for stereo channels. The mixer features 16 PRO DSP internal presets, two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post). It also features 60mm faders.

FEATURES

  • 10 Mic preamp inputs, 4 mono line inputs
  • 4 Stereo line inputs
  • PRO DSP FX onboard with 16 presets
  • Stereo recording and playback via USB port
  • 6 single control compressors
  • Balanced main output +28 dB (Stereo XLR + TRS)
  • Two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post)
  • 60 mm faders
  • Internal universal power supply
  • Designed and engineered in Italy
SPECIFICATIONS
Electrical specifications

FREQUENCY RESPONSE:
20 Hz ÷ 20 kHz

THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED):
<0,02% A-Weighted

POWER SUPPLY:
Internal

VOLTAGE REQUIREMENTS:
100 V - 240 V

POWER CONSUMPTION (W):
30 W
Inputs

GAIN RANGE:
0 dB ÷ -50 dB

GAIN SELECTION:
20 dB ÷ -30 dB

HI-Z LINE INPUTS IMPEDANCE (MOHM):
1 Mohm

HI-Z LINE INPUTS:
1

INPUT NOISE LEVEL (DBU A-WEIGHTED):
-124 dBu A-Weighted

MIC INPUTS IMPEDANCE (KOHM):
14 kohm

LINE:
8

LINE INPUT IMPEDANCE (KOHM):
21 kohm

LOW CUT:
80 Hz

MIC:
10

PHANTOM POWER +48V:
Yes

STEREO LINE:
4

STEREO LINE GAIN SELECTION:
20 dB ÷ -30 dB

STEREO LINE INPUT IMPEDANCE:
14 kohm
Outputs

MAIN MIX:
1

CONTROL ROOM:
Yes

FX SEND:
1

AUX SEND:
3

AUX OUTPUT:
4

GROUP OUT:
4

PHONES:
1
Outputs specifications

MAIN OUT LEVEL (DBU):
28 dBu

AUX OUT LEVEL (DBU):
28 dBu

GROUP OUT LEVEL (DBU):
28 dBu

PHONES OUT IMPEDANCE (OHM):
150 ohm

PHONES OUT LEVEL (DBM):
10 dBm
Compressors

RCF COMPRESSORS:
n°6 Single Control Compressors on Channels 1 to 6
EQ

INPUT CHANNELS EQ:
1 Semi Parametric / 2 Shelving

DESCRIPTION:
High: +/-15 dB @ 10 kHz Shelving Mid: +/-15 dB @ Freq. sel. from 100Hz to 8kHz - Bell Low: +/-15 dB @ 100 Hz Shelving
Auxiliary sends

AUX:
2 PRE / 1 PRE/POST

FX POST:
1
Internal Effects

SEND EFFECTS:
1
USB audio

TYPE:
B

PLAY TRK:
2

REC TRK:
2

SUPPORTED SAMPLE RATE (KHZ):
44.1, 48.0 kHz
Other features

FOOTSWITCH:
Yes
Standard compliance

CE MARKING:
Yes
Physical specifications

CABINET/CASE MATERIAL:
Metal

COLOR:
Black
Size

DEPTH:
406 mm / 15.98 inches

HEIGHT:
107 mm / 4.21 inches

WEIGHT:
6.4 kg / 14.11 lbs

WIDTH:
479 mm / 18.86 inches
Shipping informations

PACKAGE DEPTH:
523 mm / 20.59 inches

PACKAGE HEIGHT:
150 mm / 5.91 inches

PACKAGE WEIGHT:
7.4 kg / 16.31 lbs

PACKAGE WIDTH:
453 mm / 17.83 inches
